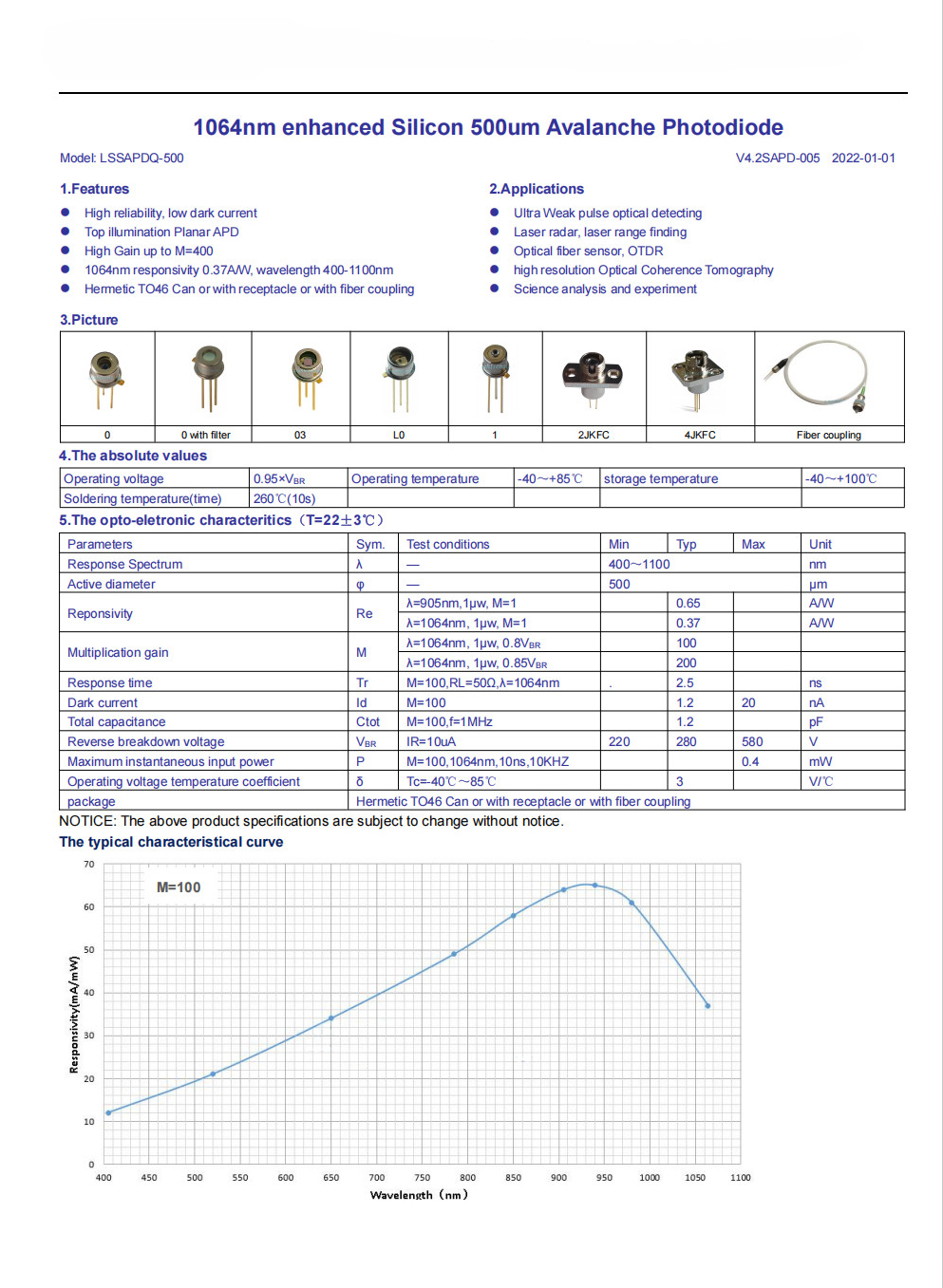

Title：1064nm enhanced 500um TO46 APD avalanche photodetector photodiode
Specification:

Wavelength:400-1100nm
Operating voltage:0.95xVBR
Operating temperature:-40~+85℃
Storage temperature:-40~+100℃
Soldering temperature(time):260℃(10s)
The opto-eletronic characteritics:(T=22±3℃)
Response Spectrum: λ 400～1100 nm
Active diameter:φ — 500 μm
Reponsivity:Re λ=905nm, 1μw, M=1 0.57;

λ=1064nm, 1μw, M=1

Multiplication gain:
λ=1064nm, 1μw, 0.8VBR 100
λ=1064nm, 1μw, 0.85VBR 200
Response time:Tr M=100,RL=50Ω,λ=1064nm . 2.5 ns

Features: High reliability, low dark current
 Top illumination Planar APD
 High Gain up to M=400
 Wavelength 400-1100nm
 Hermetic TO46 Can or with receptacle
or with fiber coupling
Applications: Ultra Weak pulse optical detecting
 Laser lidar, laser range finding
 Optical fiber sensor, OTDR
 high resolution Optical Coherence Tomography
 Science analysis and experiment
Package:1x Avalanche Photodiode 1064nm 500um
